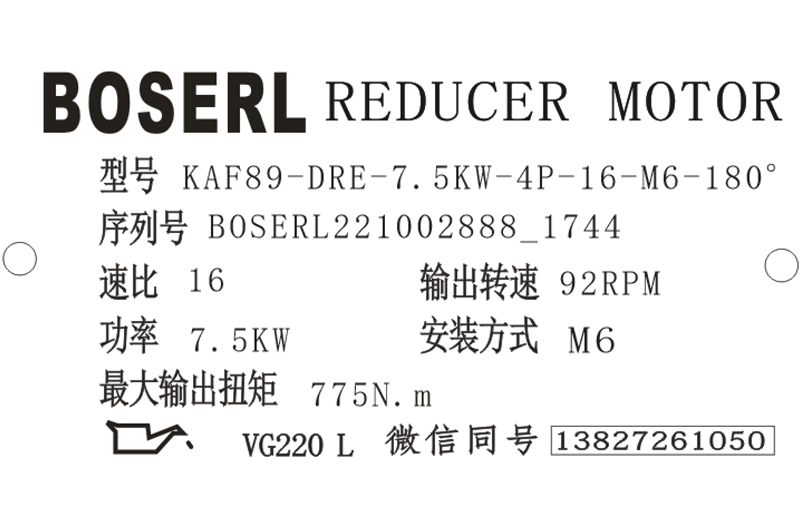

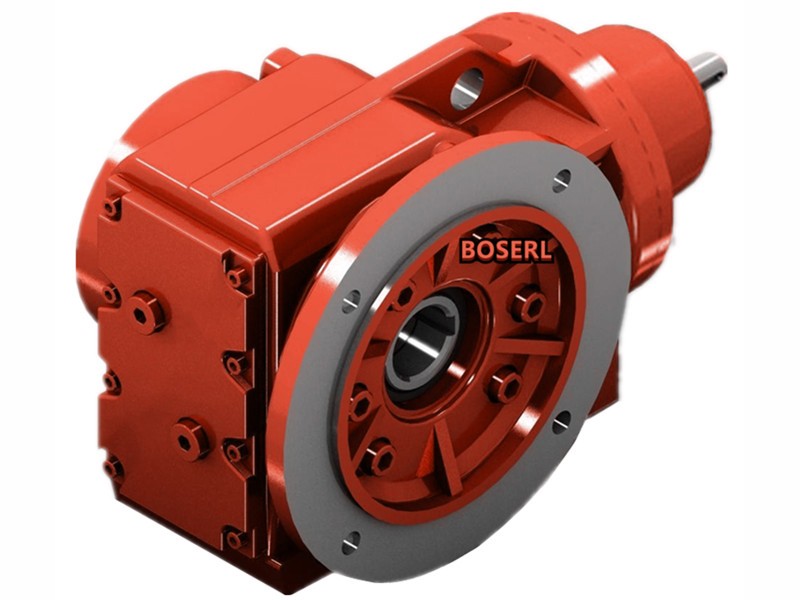

KAF89減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的KAF89減速機選型樣本。

KAF89-DRE-7.5KW-4P-16-M6-180°

KAF：系列代號

89：減速機規格代號

DRE：電機

7.5KW：電機功率

4P：電機級數

16：減速機傳動比

M6：減速機安裝位置

180°：接線盒位置

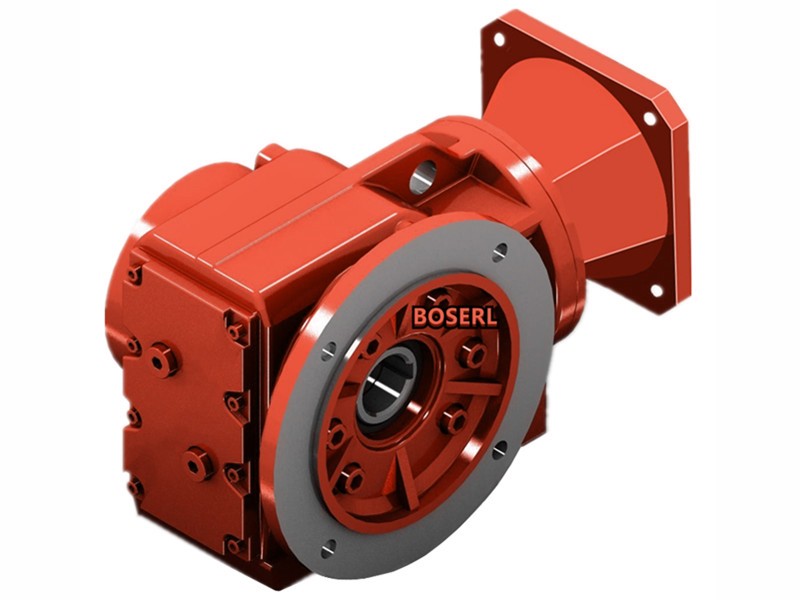

KAF89減速機AD軸入模塊配置：

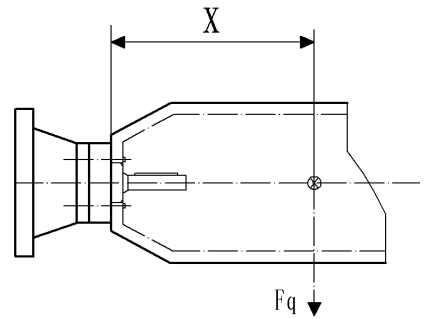

KAF89減速機AD軸入模塊允許荷載：安裝電機時可能出現超常負荷；嚴禁超出下表所列的負荷值。強度等級為8.8的連接螺栓的最大負荷值。電機的最大允許許重力Fqmax，隨著中心距X的增加而呈線性下降。在中心距減小的情況下，Fqmax不增加；聯軸器輸出法蘭盤直徑：160mm。齒輪減速電機

KAF89減速機AD軸入模塊在進行調節之前松開螺母，使得螺栓可以在支架上軸向移動。當到達最終調節位置后再上緊螺母。不可通過支架來調整電機安裝平臺。二級減速機

KAF89減速機AD軸入模塊使用對中軸肩安裝應用設備：對應用設備進行固定時，必須提供相應長度的螺栓。新螺栓的長度L計算如下：［1］t+a；［t］旋入深度（參見表格）；［a］應用設備的厚度；［s］緊固螺紋（參見表格）

KAF89減速機AD軸入模塊根據計算所得的螺栓長度，選取最接近的較小的標準長度；從對中軸肩上卸下固定螺栓；清潔裝配表面和對中軸肩；清潔新螺栓的螺紋并且使用螺栓緊固劑抹在前段螺紋上；將應用設備裝在對中軸肩上，并根據下表所列的擰緊扭矩TA(見下表)擰入緊固螺栓。

KAF89減速機維護檢查：

KAF89減速機潤滑油更換周期：下圖為在一般條件下標準KAF89減速機的更換周期，對于惡劣環境或有腐蝕條件下使用的特殊情況要縮短更換潤滑油的間隔。

KAF89減速機維護：根據外部受到的影響，可以在必要情況下對表面漆/防銹漆進行修補或更新。直角減速機

KAF89減速機檢查：首次運行300小時后更換潤滑油，以后每6個月或3000小時檢查一次，發現油位不足或明顯渾濁應及時更換(參考下列圖表)：操作步驟檢查油的質量與油位；檢查是否可能因軸承損壞產生運轉噪音；檢查密封圈是否漏油；對于帶扭矩臂的KAF89減速機：檢測橡膠緩沖塊，必要時進行更換。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換礦物油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。根據工作條件（參見下列圖表），至少每隔半年(每6個月)根據油溫決定：操作步驟更換合成潤滑油；更換軸承潤滑脂（推薦）；更換油封（不要安裝在同樣工作軌跡上）。示具體情況而定，不定期檢查（取決于外部影響）：修補或者更新表面漆/防銹漆。

KAF89減速機型號：

NKAF87-Y0.37SKAF，NKAF87-Y0.55SKAF，NKAF87-Y0.75SKAF，NKAF87-Y1.1SKAF，NKAF87-Y1.5SKAF，NKAF87-Y100M4，NKAF87-Y112M4，NKAF87-Y11SKAF，NKAF87-Y132M4，NKAF87-Y15SKAF，NKAF87-Y160M4，NKAF87-Y18.5SKAF，NKAF87-Y180M4，NKAF87-Y2.2SKAF，NKAF87-Y200M4，NKAF87-Y22SKAF，NKAF87-Y3SKAF，NKAF87-Y4SKAF，NKAF87-Y5.5SKAF，NKAF87-Y7.5SKAF，NKAF87-Y71M4，NKAF87-Y80M4，NKAF87-Y90M4，NKAF87-YB100M4，NKAF87-YB112M4，NKAF87-YB132M4，NKAF87-YB160M4，NKAF87-YB180M4，NKAF87-YB200M4，NKAF87-YB71M4，NKAF87-YB80M4，NKAF87-YB90M4，NKAF87-YDP100M4，NKAF87-YDP112M4，NKAF87-YDP132M4，NKAF87-YDP160M4，NKAF87-YDP180M4，NKAF87-YDP200M4，NKAF87-YDP71M4，NKAF87-YDP80M4，NKAF87-YDP90M4，NKAF87-YE100M4，NKAF87-YE112M4，NKAF87-YE132M4，NKAF87-YE160M4，NKAF87-YE180M4，NKAF87-YE200M4，NKAF87-YE71M4，NKAF87-YE80M4，NKAF87-YE90M4，NKAF87-YEJ100M4，NKAF87-YEJ112M4，NKAF87-YEJ132M4，NKAF87-YEJ160M4，NKAF87-YEJ180M4，NKAF87-YEJ200M4，NKAF87-YEJ71M4，NKAF87-YEJ80M4，NKAF87-YEJ90M4，NKAF87-YEJB100M4，NKAF87-YEJB112M4，NKAF87-YEJB132M4，NKAF87-YEJB160M4，NKAF87-YEJB180M4，NKAF87-YEJB200M4，NKAF87-YEJB71M4，NKAF87-YEJB80M4，NKAF87-YEJB90M4，NKAF87-YP100M4，NKAF87-YP112M4，NKAF87-YP132M4，NKAF87-YP160M4，NKAF87-YP180M4，NKAF87-YP200M4，NKAF87-YP71M4，NKAF87-YP80M4，NKAF87-YP90M4，NKAF87-YPB100M4，NKAF87-YPB112M4，NKAF87-YPB132M4，NKAF87-YPB160M4，NKAF87-YPB180M4，NKAF87-YPB200M4，NKAF87-YPB71M4，NKAF87-YPB80M4，NKAF87-YPB90M4，NKAF87-YPE100M4，NKAF87-YPE112M4，NKAF87-YPE132M4，NKAF87-YPE160M4，NKAF87-YPE180M4，NKAF87-YPE200M4，NKAF87-YPE71M4，NKAF87-YPE80M4，NKAF87-YPE90M4，NKAF87-YS100M4，NKAF87-YS112M4，NKAF87-YS132M4，NKAF87-YS160M4，NKAF87-YS180M4，NKAF87-YS200M4，NKAF87-YS71M4，NKAF87-YS80M4，NKAF87-YS90M4，NKAF87-YVB100M4，NKAF87-YVB112M4，NKAF87-YVB132M4，NKAF87-YVB160M4，NKAF87-YVB180M4，NKAF87-YVB200M4，NKAF87-YVB71M4，NKAF87-YVB80M4，NKAF87-YVB90M4，NKAF87-YVP100M4，NKAF87-YVP112M4，NKAF87-YVP132M4，NKAF87-YVP160M4，NKAF87-YVP180M4，NKAF87-YVP200M4，NKAF87-YVP71M4，NKAF87-YVP80M4，NKAF87-YVP90M4，NKAF87-YVPEJ100M4，NKAF87-YVPEJ112M4，NKAF87-YVPEJ132M4，NKAF87-YVPEJ160M4，NKAF87-YVPEJ180M4，NKAF87-YVPEJ200M4，NKAF87-YVPEJ71M4，NKAF87-YVPEJ80M4，NKAF87-YVPEJ90M4，WKAF87-Y0.37SKAF，WKAF87-Y0.55SKAF，WKAF87-Y0.75SKAF，WKAF87-Y1.1SKAF，WKAF87-Y1.5SKAF，WKAF87-Y100M4，WKAF87-Y112M4，WKAF87-Y11SKAF，WKAF87-Y132M4，WKAF87-Y15SKAF，WKAF87-Y160M4，WKAF87-Y18.5SKAF，WKAF87-Y180M4，WKAF87-Y2.2SKAF，WKAF87-Y200M4，WKAF87-Y22SKAF，WKAF87-Y3SKAF，WKAF87-Y4SKAF，WKAF87-Y5.5SKAF，WKAF87-Y7.5SKAF，WKAF87-Y71M4，WKAF87-Y80M4，WKAF87-Y90M4，WKAF87-YB100M4，WKAF87-YB112M4，WKAF87-YB132M4，WKAF87-YB160M4，WKAF87-YB180M4，WKAF87-YB200M4，WKAF87-YB71M4，WKAF87-YB80M4，WKAF87-YB90M4，WKAF87-YDP100M4，WKAF87-YDP112M4，WKAF87-YDP132M4，WKAF87-YDP160M4，WKAF87-YDP180M4，WKAF87-YDP200M4，WKAF87-YDP71M4，WKAF87-YDP80M4，WKAF87-YDP90M4，WKAF87-YE100M4，WKAF87-YE112M4，WKAF87-YE132M4，WKAF87-YE160M4，WKAF87-YE180M4，WKAF87-YE200M4，WKAF87-YE71M4，WKAF87-YE80M4，WKAF87-YE90M4，WKAF87-YEJ100M4，WKAF87-YEJ112M4，WKAF87-YEJ132M4，WKAF87-YEJ160M4，WKAF87-YEJ180M4，WKAF87-YEJ200M4，WKAF87-YEJ71M4，WKAF87-YEJ80M4，WKAF87-YEJ90M4，WKAF87-YEJB100M4，WKAF87-YEJB112M4，WKAF87-YEJB132M4，WKAF87-YEJB160M4，WKAF87-YEJB180M4，WKAF87-YEJB200M4，WKAF87-YEJB71M4，WKAF87-YEJB80M4，WKAF87-YEJB90M4，WKAF87-YP100M4，WKAF87-YP112M4，WKAF87-YP132M4，WKAF87-YP160M4，WKAF87-YP180M4，WKAF87-YP200M4，WKAF87-YP71M4，WKAF87-YP80M4，WKAF87-YP90M4，WKAF87-YPB100M4，WKAF87-YPB112M4，WKAF87-YPB132M4，WKAF87-YPB160M4，WKAF87-YPB180M4，WKAF87-YPB200M4，WKAF87-YPB71M4，WKAF87-YPB80M4，WKAF87-YPB90M4，WKAF87-YPE100M4，WKAF87-YPE112M4，WKAF87-YPE132M4，WKAF87-YPE160M4，WKAF87-YPE180M4，WKAF87-YPE200M4，WKAF87-YPE71M4，WKAF87-YPE80M4，WKAF87-YPE90M4，WKAF87-YS100M4，WKAF87-YS112M4，WKAF87-YS132M4，WKAF87-YS160M4，WKAF87-YS180M4，WKAF87-YS200M4，WKAF87-YS71M4，WKAF87-YS80M4，WKAF87-YS90M4，WKAF87-YVB100M4，WKAF87-YVB112M4，WKAF87-YVB132M4，WKAF87-YVB160M4，WKAF87-YVB180M4，WKAF87-YVB200M4，WKAF87-YVB71M4，WKAF87-YVB80M4，WKAF87-YVB90M4，WKAF87-YVP100M4，WKAF87-YVP112M4，WKAF87-YVP132M4，WKAF87-YVP160M4，WKAF87-YVP180M4，WKAF87-YVP200M4，WKAF87-YVP71M4，WKAF87-YVP80M4，WKAF87-YVP90M4，WKAF87-YVPEJ100M4，WKAF87-YVPEJ112M4，WKAF87-YVPEJ132M4，WKAF87-YVPEJ160M4，WKAF87-YVPEJ180M4，WKAF87-YVPEJ200M4，WKAF87-YVPEJ71M4，WKAF87-YVPEJ80M4，WKAF87-YVPEJ90M4，AKAF87-Y0.37SKAF，AKAF87-Y0.55SKAF，AKAF87-Y0.75SKAF，AKAF87-Y1.1SKAF，AKAF87-Y1.5SKAF，AKAF87-Y100M4，AKAF87-Y112M4，AKAF87-Y11SKAF，AKAF87-Y132M4，AKAF87-Y15SKAF，AKAF87-Y160M4，AKAF87-Y18.5SKAF，AKAF87-Y180M4，AKAF87-Y2.2SKAF，AKAF87-Y200M4，AKAF87-Y22SKAF，AKAF87-Y3SKAF，AKAF87-Y4SKAF，AKAF87-Y5.5SKAF，AKAF87-Y7.5SKAF，AKAF87-Y71M4，AKAF87-Y80M4，AKAF87-Y90M4，AKAF87-YB100M4，AKAF87-YB112M4，AKAF87-YB132M4，AKAF87-YB160M4，AKAF87-YB180M4，AKAF87-YB200M4，AKAF87-YB71M4，AKAF87-YB80M4，AKAF87-YB90M4，AKAF87-YDP100M4，AKAF87-YDP112M4，AKAF87-YDP132M4，AKAF87-YDP160M4，AKAF87-YDP180M4，AKAF87-YDP200M4，AKAF87-YDP71M4，AKAF87-YDP80M4，AKAF87-YDP90M4，AKAF87-YE100M4，AKAF87-YE112M4，AKAF87-YE132M4，AKAF87-YE160M4，AKAF87-YE180M4，AKAF87-YE200M4，AKAF87-YE71M4，AKAF87-YE80M4，AKAF87-YE90M4，AKAF87-YEJ100M4，AKAF87-YEJ112M4，AKAF87-YEJ132M4，AKAF87-YEJ160M4，AKAF87-YEJ180M4，AKAF87-YEJ200M4，AKAF87-YEJ71M4，AKAF87-YEJ80M4，AKAF87-YEJ90M4，AKAF87-YEJB100M4，AKAF87-YEJB112M4，AKAF87-YEJB132M4，AKAF87-YEJB160M4，AKAF87-YEJB180M4，AKAF87-YEJB200M4，AKAF87-YEJB71M4，AKAF87-YEJB80M4，AKAF87-YEJB90M4，AKAF87-YP100M4，AKAF87-YP112M4，AKAF87-YP132M4，AKAF87-YP160M4，AKAF87-YP180M4，AKAF87-YP200M4，AKAF87-YP71M4，AKAF87-YP80M4，AKAF87-YP90M4，AKAF87-YPB100M4，AKAF87-YPB112M4，AKAF87-YPB132M4，AKAF87-YPB160M4，AKAF87-YPB180M4，AKAF87-YPB200M4，AKAF87-YPB71M4，AKAF87-YPB80M4，AKAF87-YPB90M4，AKAF87-YPE100M4，AKAF87-YPE112M4，AKAF87-YPE132M4，AKAF87-YPE160M4，AKAF87-YPE180M4，AKAF87-YPE200M4，AKAF87-YPE71M4，AKAF87-YPE80M4，AKAF87-YPE90M4，AKAF87-YS100M4，AKAF87-YS112M4，AKAF87-YS132M4，AKAF87-YS160M4，AKAF87-YS180M4，AKAF87-YS200M4，AKAF87-YS71M4，AKAF87-YS80M4，AKAF87-YS90M4，AKAF87-YVB100M4，AKAF87-YVB112M4，AKAF87-YVB132M4，AKAF87-YVB160M4，AKAF87-YVB180M4，AKAF87-YVB200M4，AKAF87-YVB71M4，AKAF87-YVB80M4，AKAF87-YVB90M4，AKAF87-YVP100M4，AKAF87-YVP112M4，AKAF87-YVP132M4，AKAF87-YVP160M4，AKAF87-YVP180M4，AKAF87-YVP200M4，AKAF87-YVP71M4，AKAF87-YVP80M4，AKAF87-YVP90M4，AKAF87-YVPEJ100M4，AKAF87-YVPEJ112M4，AKAF87-YVPEJ132M4，AKAF87-YVPEJ160M4，AKAF87-YVPEJ180M4，AKAF87-YVPEJ200M4，AKAF87-YVPEJ71M4，AKAF87-YVPEJ80M4，AKAF87-YVPEJ90M4，SKAF87-Y0.37SKAF，SKAF87-Y0.55SKAF，SKAF87-Y0.75SKAF，SKAF87-Y1.1SKAF，SKAF87-Y1.5SKAF，SKAF87-Y100M4，SKAF87-Y112M4，SKAF87-Y11SKAF，SKAF87-Y132M4，SKAF87-Y15SKAF，SKAF87-Y160M4，SKAF87-Y18.5SKAF，SKAF87-Y180M4，SKAF87-Y2.2SKAF，SKAF87-Y200M4，SKAF87-Y22SKAF，SKAF87-Y3SKAF，SKAF87-Y4SKAF，SKAF87-Y5.5SKAF，SKAF87-Y7.5SKAF，SKAF87-Y71M4，SKAF87-Y80M4，SKAF87-Y90M4，SKAF87-YB100M4，SKAF87-YB112M4，SKAF87-YB132M4，SKAF87-YB160M4，SKAF87-YB180M4，SKAF87-YB200M4，SKAF87-YB71M4，SKAF87-YB80M4，SKAF87-YB90M4，SKAF87-YDP100M4，SKAF87-YDP112M4，SKAF87-YDP132M4，SKAF87-YDP160M4，SKAF87-YDP180M4，SKAF87-YDP200M4，SKAF87-YDP71M4，SKAF87-YDP80M4，SKAF87-YDP90M4，SKAF87-YE100M4，SKAF87-YE112M4，SKAF87-YE132M4，SKAF87-YE160M4，SKAF87-YE180M4，SKAF87-YE200M4，SKAF87-YE71M4，SKAF87-YE80M4，SKAF87-YE90M4，SKAF87-YEJ100M4，SKAF87-YEJ112M4，SKAF87-YEJ132M4，SKAF87-YEJ160M4，SKAF87-YEJ180M4，SKAF87-YEJ200M4，SKAF87-YEJ71M4，SKAF87-YEJ80M4，SKAF87-YEJ90M4，SKAF87-YEJB100M4，SKAF87-YEJB112M4，SKAF87-YEJB132M4，SKAF87-YEJB160M4，SKAF87-YEJB180M4，SKAF87-YEJB200M4，SKAF87-YEJB71M4，SKAF87-YEJB80M4，SKAF87-YEJB90M4，SKAF87-YP100M4，SKAF87-YP112M4，SKAF87-YP132M4，SKAF87-YP160M4，SKAF87-YP180M4，SKAF87-YP200M4，SKAF87-YP71M4，SKAF87-YP80M4，SKAF87-YP90M4，SKAF87-YPB100M4，SKAF87-YPB112M4，SKAF87-YPB132M4，SKAF87-YPB160M4，SKAF87-YPB180M4，SKAF87-YPB200M4，SKAF87-YPB71M4，SKAF87-YPB80M4，SKAF87-YPB90M4，SKAF87-YPE100M4，SKAF87-YPE112M4，SKAF87-YPE132M4，SKAF87-YPE160M4，SKAF87-YPE180M4，SKAF87-YPE200M4，SKAF87-YPE71M4，SKAF87-YPE80M4，SKAF87-YPE90M4，SKAF87-YS100M4，SKAF87-YS112M4，SKAF87-YS132M4，SKAF87-YS160M4，SKAF87-YS180M4，SKAF87-YS200M4，SKAF87-YS71M4，SKAF87-YS80M4，SKAF87-YS90M4，SKAF87-YVB100M4，SKAF87-YVB112M4，SKAF87-YVB132M4，SKAF87-YVB160M4，SKAF87-YVB180M4，SKAF87-YVB200M4，SKAF87-YVB71M4，SKAF87-YVB80M4，SKAF87-YVB90M4，SKAF87-YVP100M4，SKAF87-YVP112M4，SKAF87-YVP132M4，SKAF87-YVP160M4，SKAF87-YVP180M4，SKAF87-YVP200M4，SKAF87-YVP71M4，SKAF87-YVP80M4，SKAF87-YVP90M4，SKAF87-YVPEJ100M4，SKAF87-YVPEJ112M4，SKAF87-YVPEJ132M4，SKAF87-YVPEJ160M4，SKAF87-YVPEJ180M4，SKAF87-YVPEJ200M4，SKAF87-YVPEJ71M4，SKAF87-YVPEJ80M4，SKAF87-YVPEJ90M4，GKAF89-Y0.37SKAF，GKAF89-Y0.55SKAF，GKAF89-Y0.75SKAF，GKAF89-Y1.1SKAF，GKAF89-Y1.5SKAF，GKAF89-Y100M4，GKAF89-Y112M4，GKAF89-Y11SKAF，GKAF89-Y132M4，GKAF89-Y15SKAF，GKAF89-Y160M4，GKAF89-Y18.5SKAF，GKAF89-Y180M4，GKAF89-Y2.2SKAF，GKAF89-Y200M4，GKAF89-Y22SKAF，GKAF89-Y3SKAF，GKAF89-Y4SKAF，GKAF89-Y5.5SKAF，GKAF89-Y7.5SKAF，GKAF89-Y71M4，GKAF89-Y80M4，GKAF89-Y90M4，GKAF89-YB100M4，GKAF89-YB112M4，GKAF89-YB132M4，GKAF89-YB160M4，GKAF89-YB180M4，GKAF89-YB200M4，GKAF89-YB71M4，GKAF89-YB80M4，GKAF89-YB90M4，GKAF89-YDP100M4，GKAF89-YDP112M4，GKAF89-YDP132M4，GKAF89-YDP160M4，GKAF89-YDP180M4，GKAF89-YDP200M4，GKAF89-YDP71M4，GKAF89-YDP80M4，GKAF89-YDP90M4，GKAF89-YE100M4，GKAF89-YE112M4，GKAF89-YE132M4，GKAF89-YE160M4，GKAF89-YE180M4，GKAF89-YE200M4，GKAF89-YE71M4，GKAF89-YE80M4，GKAF89-YE90M4，GKAF89-YEJ100M4，GKAF89-YEJ112M4，GKAF89-YEJ132M4，GKAF89-YEJ160M4，GKAF89-YEJ180M4，GKAF89-YEJ200M4，GKAF89-YEJ71M4，GKAF89-YEJ80M4，GKAF89-YEJ90M4，GKAF89-YEJB100M4，GKAF89-YEJB112M4，GKAF89-YEJB132M4，GKAF89-YEJB160M4，GKAF89-YEJB180M4，GKAF89-YEJB200M4，GKAF89-YEJB71M4，GKAF89-YEJB80M4，GKAF89-YEJB90M4，GKAF89-YP100M4，GKAF89-YP112M4，GKAF89-YP132M4，GKAF89-YP160M4，GKAF89-YP180M4，GKAF89-YP200M4，GKAF89-YP71M4，GKAF89-YP80M4，GKAF89-YP90M4，GKAF89-YPB100M4，GKAF89-YPB112M4，GKAF89-YPB132M4，GKAF89-YPB160M4，GKAF89-YPB180M4，GKAF89-YPB200M4，GKAF89-YPB71M4，GKAF89-YPB80M4，GKAF89-YPB90M4，GKAF89-YPE100M4，GKAF89-YPE112M4，GKAF89-YPE132M4，GKAF89-YPE160M4，GKAF89-YPE180M4，GKAF89-YPE200M4，GKAF89-YPE71M4，GKAF89-YPE80M4，GKAF89-YPE90M4，GKAF89-YS100M4，GKAF89-YS112M4，GKAF89-YS132M4，GKAF89-YS160M4，GKAF89-YS180M4，GKAF89-YS200M4，GKAF89-YS71M4，GKAF89-YS80M4，GKAF89-YS90M4，GKAF89-YVB100M4，GKAF89-YVB112M4，GKAF89-YVB132M4，GKAF89-YVB160M4，GKAF89-YVB180M4，GKAF89-YVB200M4，GKAF89-YVB71M4，GKAF89-YVB80M4，GKAF89-YVB90M4，GKAF89-YVP100M4，GKAF89-YVP112M4，GKAF89-YVP132M4，GKAF89-YVP160M4，GKAF89-YVP180M4，GKAF89-YVP200M4，GKAF89-YVP71M4，GKAF89-YVP80M4，GKAF89-YVP90M4，GKAF89-YVPEJ100M4，GKAF89-YVPEJ112M4，GKAF89-YVPEJ132M4，GKAF89-YVPEJ160M4，GKAF89-YVPEJ180M4，GKAF89-YVPEJ200M4，GKAF89-YVPEJ71M4，GKAF89-YVPEJ80M4，GKAF89-YVPEJ90M4。
