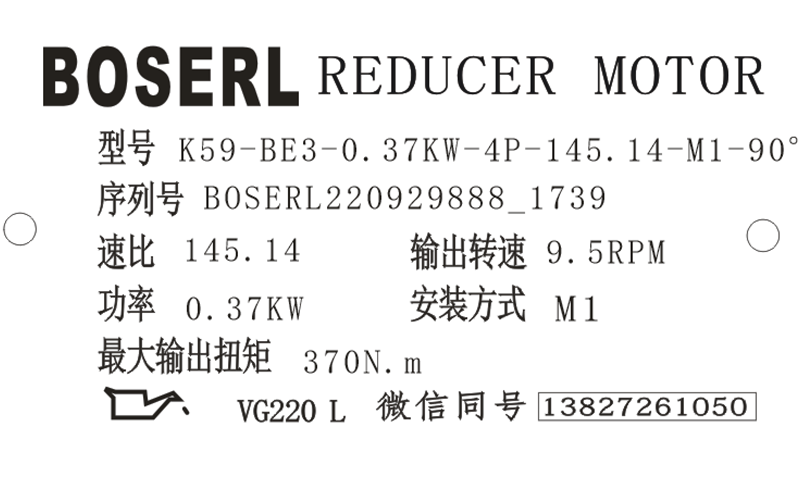

K59減速器銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的K59減速器選型樣本。

K59-BE3-0.37KW-4P-145.14-M1-90°

K：系列代號

59：減速機規格代號

BE3：電機

0.37KW：電機功率

4P：電機級數

145.14：減速機傳動比

M1：減速機安裝位置

90°：接線盒位置

K59減速器上的圖標說明：下表列出安裝位置章節中所采用的圖標及其含義

K59減速器安裝所需工具以及材料：

由于安裝位置的原因，從油位螺栓觀察，油位可能出現微量偏差。這種情況屬于正常的制造公差。當安裝位置發生改變時，潤滑油加注油量和透氣閥的位置必須作相應的調整。K59減速器安裝時要注意油位檢查螺栓、放油螺栓以及透氣閥可以很方便靠近！同時還要檢查，注油量是否按照規定的安裝位置進行參見“潤滑油加油量”章節或者銘牌上的說明。K59減速器在出廠時加注了相應油量的潤滑油。同時要注意“潤滑油加注章節”以及“安裝位置章節”中的內容。要將K59減速器的安裝位置改變為M5或M6，或者M5、M6之間的安裝位置，請您咨詢BOSERL公司客戶服務部。若要將K59減速器改裝成M2或M3時，請與BOSERL公司客戶服務部聯系。為了防止電化學腐蝕，請您在K59減速器與驅動機械部件之間采用2-3mm厚塑料材料隔板進行隔離。采用的塑料材料的泄露電阻值必須＜109Ω。電化學腐蝕可能發生在不同的金屬物質之間，如鑄鐵與不銹鋼。請為固定螺釘同樣配置塑料材質的墊片！還要通過電機上的接地螺栓對K59減速器箱體進行連接接地。直角減速機

輔助材料、扳手套件、扭矩扳手、鎖鍵盤、AQH電機聯軸器、帶對中軸肩的輸入軸裝置AD/ZR、套裝夾具、可能需要的調整元件（墊片、間隔環）、輸入/輸出元件的緊固裝置、 潤滑油（K59減速器出廠已經自帶潤滑油）、用于緊固螺栓的密封膠（針對帶對中軸肩的輸入軸裝置AD/ZR），所有的標準部件均不是供貨范圍。

K59減速器故障售后服務統籌：

K59減速器潤滑油泄露：K59減速器密封面密封性能不良，擰緊K59減速器蓋上的螺釘并觀察K59減速器。如果潤滑油繼續泄露，請向客戶服務部咨詢；密封圈損壞，請向客戶服務部咨詢；K59減速器透氣閥失效，給K59減速器透氣參見“K59減速器說明書的安裝位置”章節。齒輪減速電機

K59減速器異常、無規律的運轉噪音：軸承損壞，檢查潤滑油參見“K59減速器說明書的檢查/維護”章節，更換軸承；齒輪有損失，請向客戶服務部咨詢；潤滑油中有異物，檢查潤滑油參見“K59減速器說明書的檢查/維護”章節；傳動裝置停車，請向客戶服務部咨詢；

K59減速器潤滑油從透氣閥處滲出：潤滑油太多，調節油量參見“K59減速器說明書的檢查/維護”章節；K59減速器安裝位置錯誤，正確安裝透氣閥參見“K59減速器說明書的安裝位置”章節，調節油位參見“K59減速器說明書的檢查/維護”章節。

K59減速器電機或輸入軸轉動，而輸出軸不轉：K59減速器中的軸輪轂聯接斷裂，將K59減速器或減速電機送來我司修理。K系列減速機

在磨合期（48小時的運轉時間內）油封可能出現短期內的滲油或油脂的現象。對K59減速器和電機的不當操作可能造成損失。BOSERL驅動裝置的維修必須由合格的專業人員進行。只能由專業人員對驅動裝置與電機進行分離。如發生故障，請與BOSERL公司客戶服務部聯系。

K59減速器型號：

KW57-Y0.12KW，KW57-Y0.18KW，KW57-Y0.25KW，KW57-Y0.37KW，KW57-Y0.55KW，KW57-Y0.75KW，KW57-Y1.1KW，KW57-Y1.5KW，KW57-Y100M4，KW57-Y112M4，KW57-Y2.2KW，KW57-Y3KW，KW57-Y4KW，KW57-Y63M4，KW57-Y71M4，KW57-Y80M4，KW57-Y90M4，KW57-YB100M4，KW57-YB112M4，KW57-YB63M4，KW57-YB71M4，KW57-YB80M4，KW57-YB90M4，KW57-YDP100M4，KW57-YDP112M4，KW57-YDP63M4，KW57-YDP71M4，KW57-YDP80M4，KW57-YDP90M4，KW57-YE100M4，KW57-YE112M4，KW57-YE63M4，KW57-YE71M4，KW57-YE80M4，KW57-YE90M4，KW57-YEJ100M4，KW57-YEJ112M4，KW57-YEJ63M4，KW57-YEJ71M4，KW57-YEJ80M4，KW57-YEJ90M4，KW57-YEJB100M4，KW57-YEJB112M4，KW57-YEJB63M4，KW57-YEJB71M4，KW57-YEJB80M4，KW57-YEJB90M4，KW57-YP100M4，KW57-YP112M4，KW57-YP63M4，KW57-YP71M4，KW57-YP80M4，KW57-YP90M4，KW57-YPB100M4，KW57-YPB112M4，KW57-YPB63M4，KW57-YPB71M4，KW57-YPB80M4，KW57-YPB90M4，KW57-YPE100M4，KW57-YPE112M4，KW57-YPE63M4，KW57-YPE71M4，KW57-YPE80M4，KW57-YPE90M4，KW57-YS100M4，KW57-YS112M4，KW57-YS63M4，KW57-YS71M4，KW57-YS80M4，KW57-YS90M4，KW57-YVB100M4，KW57-YVB112M4，KW57-YVB63M4，KW57-YVB71M4，KW57-YVB80M4，KW57-YVB90M4，KW57-YVP100M4，KW57-YVP112M4，KW57-YVP63M4，KW57-YVP71M4，KW57-YVP80M4，KW57-YVP90M4，KW57-YVPEJ100M4，KW57-YVPEJ112M4，KW57-YVPEJ63M4，KW57-YVPEJ71M4，KW57-YVPEJ80M4，KW57-YVPEJ90M4，XDK57-Y0.12KW，XDK57-Y0.18KW，XDK57-Y0.25KW，XDK57-Y0.37KW，XDK57-Y0.55KW，XDK57-Y0.75KW，XDK57-Y1.1KW，XDK57-Y1.5KW，XDK57-Y100M4，XDK57-Y112M4，XDK57-Y2.2KW，XDK57-Y3KW，XDK57-Y4KW，XDK57-Y63M4，XDK57-Y71M4，XDK57-Y80M4，XDK57-Y90M4，XDK57-YB100M4，XDK57-YB112M4，XDK57-YB63M4，XDK57-YB71M4，XDK57-YB80M4，XDK57-YB90M4，XDK57-YDP100M4，XDK57-YDP112M4，XDK57-YDP63M4，XDK57-YDP71M4，XDK57-YDP80M4，XDK57-YDP90M4，XDK57-YE100M4，XDK57-YE112M4，XDK57-YE63M4，XDK57-YE71M4，XDK57-YE80M4，XDK57-YE90M4，XDK57-YEJ100M4，XDK57-YEJ112M4，XDK57-YEJ63M4，XDK57-YEJ71M4，XDK57-YEJ80M4，XDK57-YEJ90M4，XDK57-YEJB100M4，XDK57-YEJB112M4，XDK57-YEJB63M4，XDK57-YEJB71M4，XDK57-YEJB80M4，XDK57-YEJB90M4，XDK57-YP100M4，XDK57-YP112M4，XDK57-YP63M4，XDK57-YP71M4，XDK57-YP80M4，XDK57-YP90M4，XDK57-YPB100M4，XDK57-YPB112M4，XDK57-YPB63M4，XDK57-YPB71M4，XDK57-YPB80M4，XDK57-YPB90M4，XDK57-YPE100M4，XDK57-YPE112M4，XDK57-YPE63M4，XDK57-YPE71M4，XDK57-YPE80M4，XDK57-YPE90M4，XDK57-YS100M4，XDK57-YS112M4，XDK57-YS63M4，XDK57-YS71M4，XDK57-YS80M4，XDK57-YS90M4，XDK57-YVB100M4，XDK57-YVB112M4，XDK57-YVB63M4，XDK57-YVB71M4，XDK57-YVB80M4，XDK57-YVB90M4，XDK57-YVP100M4，XDK57-YVP112M4，XDK57-YVP63M4，XDK57-YVP71M4，XDK57-YVP80M4，XDK57-YVP90M4，XDK57-YVPEJ100M4，XDK57-YVPEJ112M4，XDK57-YVPEJ63M4，XDK57-YVPEJ71M4，XDK57-YVPEJ80M4，XDK57-YVPEJ90M4，YQK57-Y0.12KW，YQK57-Y0.18KW，YQK57-Y0.25KW，YQK57-Y0.37KW，YQK57-Y0.55KW，YQK57-Y0.75KW，YQK57-Y1.1KW，YQK57-Y1.5KW，YQK57-Y100M4，YQK57-Y112M4，YQK57-Y2.2KW，YQK57-Y3KW，YQK57-Y4KW，YQK57-Y63M4，YQK57-Y71M4，YQK57-Y80M4，YQK57-Y90M4，YQK57-YB100M4，YQK57-YB112M4，YQK57-YB63M4，YQK57-YB71M4，YQK57-YB80M4，YQK57-YB90M4，YQK57-YDP100M4，YQK57-YDP112M4，YQK57-YDP63M4，YQK57-YDP71M4，YQK57-YDP80M4，YQK57-YDP90M4，YQK57-YE100M4，YQK57-YE112M4，YQK57-YE63M4，YQK57-YE71M4，YQK57-YE80M4，YQK57-YE90M4，YQK57-YEJ100M4，YQK57-YEJ112M4，YQK57-YEJ63M4，YQK57-YEJ71M4，YQK57-YEJ80M4，YQK57-YEJ90M4，YQK57-YEJB100M4，YQK57-YEJB112M4，YQK57-YEJB63M4，YQK57-YEJB71M4，YQK57-YEJB80M4，YQK57-YEJB90M4，YQK57-YP100M4，YQK57-YP112M4，YQK57-YP63M4，YQK57-YP71M4，YQK57-YP80M4，YQK57-YP90M4，YQK57-YPB100M4，YQK57-YPB112M4，YQK57-YPB63M4，YQK57-YPB71M4，YQK57-YPB80M4，YQK57-YPB90M4，YQK57-YPE100M4，YQK57-YPE112M4，YQK57-YPE63M4，YQK57-YPE71M4，YQK57-YPE80M4，YQK57-YPE90M4，YQK57-YS100M4，YQK57-YS112M4，YQK57-YS63M4，YQK57-YS71M4，YQK57-YS80M4，YQK57-YS90M4，YQK57-YVB100M4，YQK57-YVB112M4，YQK57-YVB63M4，YQK57-YVB71M4，YQK57-YVB80M4，YQK57-YVB90M4，YQK57-YVP100M4，YQK57-YVP112M4，YQK57-YVP63M4，YQK57-YVP71M4，YQK57-YVP80M4，YQK57-YVP90M4，YQK57-YVPEJ100M4，YQK57-YVPEJ112M4，YQK57-YVPEJ63M4，YQK57-YVPEJ71M4，YQK57-YVPEJ80M4，YQK57-YVPEJ90M4，JCK57-Y0.12KW，JCK57-Y0.18KW，JCK57-Y0.25KW，JCK57-Y0.37KW，JCK57-Y0.55KW，JCK57-Y0.75KW，JCK57-Y1.1KW，JCK57-Y1.5KW，JCK57-Y100M4，JCK57-Y112M4，JCK57-Y2.2KW，JCK57-Y3KW，JCK57-Y4KW，JCK57-Y63M4，JCK57-Y71M4，JCK57-Y80M4，JCK57-Y90M4，JCK57-YB100M4，JCK57-YB112M4，JCK57-YB63M4，JCK57-YB71M4，JCK57-YB80M4，JCK57-YB90M4，JCK57-YDP100M4，JCK57-YDP112M4，JCK57-YDP63M4，JCK57-YDP71M4，JCK57-YDP80M4，JCK57-YDP90M4，JCK57-YE100M4，JCK57-YE112M4，JCK57-YE63M4，JCK57-YE71M4，JCK57-YE80M4，JCK57-YE90M4，JCK57-YEJ100M4，JCK57-YEJ112M4，JCK57-YEJ63M4，JCK57-YEJ71M4，JCK57-YEJ80M4，JCK57-YEJ90M4，JCK57-YEJB100M4，JCK57-YEJB112M4，JCK57-YEJB63M4，JCK57-YEJB71M4，JCK57-YEJB80M4，JCK57-YEJB90M4，JCK57-YP100M4，JCK57-YP112M4，JCK57-YP63M4，JCK57-YP71M4，JCK57-YP80M4，JCK57-YP90M4，JCK57-YPB100M4，JCK57-YPB112M4，JCK57-YPB63M4，JCK57-YPB71M4，JCK57-YPB80M4，JCK57-YPB90M4，JCK57-YPE100M4，JCK57-YPE112M4，JCK57-YPE63M4，JCK57-YPE71M4，JCK57-YPE80M4，JCK57-YPE90M4，JCK57-YS100M4，JCK57-YS112M4，JCK57-YS63M4，JCK57-YS71M4，JCK57-YS80M4，JCK57-YS90M4，JCK57-YVB100M4，JCK57-YVB112M4，JCK57-YVB63M4，JCK57-YVB71M4，JCK57-YVB80M4，JCK57-YVB90M4，JCK57-YVP100M4，JCK57-YVP112M4，JCK57-YVP63M4，JCK57-YVP71M4，JCK57-YVP80M4，JCK57-YVP90M4，JCK57-YVPEJ100M4，JCK57-YVPEJ112M4，JCK57-YVPEJ63M4，JCK57-YVPEJ71M4，JCK57-YVPEJ80M4，JCK57-YVPEJ90M4，K59-Y0.12KW，K59-Y0.18KW，K59-Y0.25KW，K59-Y0.37KW，K59-Y0.55KW，K59-Y0.75KW，K59-Y1.1KW，K59-Y1.5KW，K59-Y100M4，K59-Y112M4，K59-Y2.2KW，K59-Y3KW，K59-Y4KW，K59-Y63M4，K59-Y71M4，K59-Y80M4，K59-Y90M4，K59-YB100M4，K59-YB112M4，K59-YB63M4，K59-YB71M4，K59-YB80M4，K59-YB90M4，K59-YDP100M4，K59-YDP112M4，K59-YDP63M4，K59-YDP71M4，K59-YDP80M4，K59-YDP90M4，K59-YE100M4，K59-YE112M4，K59-YE63M4，K59-YE71M4，K59-YE80M4，K59-YE90M4，K59-YEJ100M4，K59-YEJ112M4，K59-YEJ63M4，K59-YEJ71M4，K59-YEJ80M4，K59-YEJ90M4，K59-YEJB100M4，K59-YEJB112M4，K59-YEJB63M4，K59-YEJB71M4，K59-YEJB80M4，K59-YEJB90M4，K59-YP100M4，K59-YP112M4，K59-YP63M4，K59-YP71M4，K59-YP80M4，K59-YP90M4，K59-YPB100M4，K59-YPB112M4，K59-YPB63M4，K59-YPB71M4，K59-YPB80M4，K59-YPB90M4，K59-YPE100M4，K59-YPE112M4，K59-YPE63M4，K59-YPE71M4，K59-YPE80M4，K59-YPE90M4，K59-YS100M4，K59-YS112M4，K59-YS63M4，K59-YS71M4，K59-YS80M4，K59-YS90M4，K59-YVB100M4，K59-YVB112M4，K59-YVB63M4，K59-YVB71M4，K59-YVB80M4，K59-YVB90M4，K59-YVP100M4，K59-YVP112M4，K59-YVP63M4，K59-YVP71M4，K59-YVP80M4，K59-YVP90M4，K59-YVPEJ100M4，K59-YVPEJ112M4，K59-YVPEJ63M4，K59-YVPEJ71M4，K59-YVPEJ80M4，K59-YVPEJ90M4，K57SF80，K57SF90，K57SF100，K57SF112，K57SF115，K57SF140，K57SF160，K57SF190。
