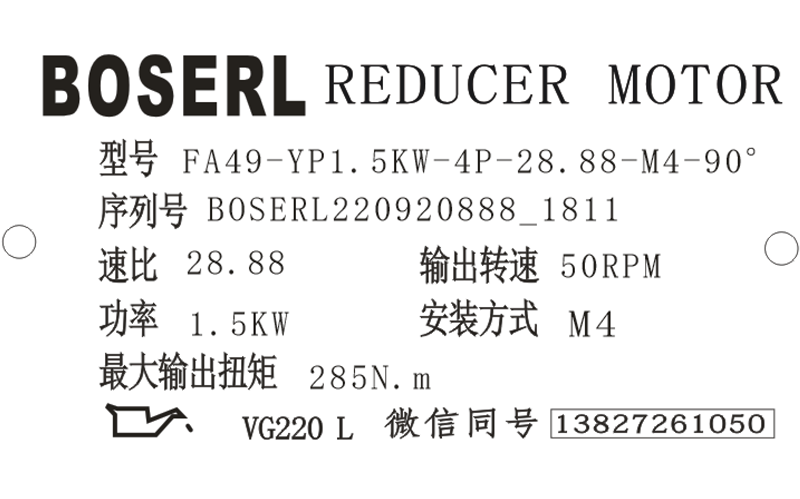

FA49減速機銘牌參數說明解讀含義：有關型號描述的詳細情況及其他信息可以參閱本業附件下載中的F49減速機選型樣本。

FA49-YP1.5KW-4P-28.88-M4-90°

FA：系列代號

49：減速機規格代號

YP：電機

1.5KW：電機功率

4P：電機級數

28.88：減速機傳動比

M4：減速機安裝位置

90°：接線盒位置

FA49減速機扭力臂安裝：

請按以下步驟安裝橡膠緩沖塊：1.根據下表采用螺栓［1］和墊片［2］；2.用兩個螺母［3］緊固螺栓；3.擰緊螺栓，直至橡膠緩沖塊的預緊力“△L”達到表中的要求。下圖為FA49減速機的扭力臂安裝示意圖：齒輪減速電機

FA49減速機電機安裝和電機安裝位置的調整：

均勻調整螺母將電機安裝平臺固定到需要的位置。如要將FA49減速機的位置調整到最低，則在必要情況下可以拆除吊裝螺栓/吊耳；對于損傷的漆面部位進行修補。平行軸斜齒輪減速機

將電機與電機安裝平臺對準(軸端不許對齊)并固定。

將輸入端部件安裝于輸入端的軸端面和電機軸，將輸入部件、軸端與電機軸的位置相互校正；如果必要可以對電機位置進行再次校正。

裝上傳動部件（V型皮帶、鏈條...）并均勻調節電機安裝平臺使其預張緊。期間不得用力過猛，否則將會擰壞電機安裝平臺和螺桿。

擰緊非調整螺母以固定螺桿。分體電機減速機

FA49減速機型號：

WFA47-Y0.12KW，WFA47-Y0.18KW，WFA47-Y0.25KW，WFA47-Y0.37KW，WFA47-Y0.55KW，WFA47-Y0.75KW，WFA47-Y1.1KW，WFA47-Y1.5KW，WFA47-Y100M4，WFA47-Y2.2KW，WFA47-Y3KW，WFA47-Y63M4，WFA47-Y71M4，WFA47-Y80M4，WFA47-Y90M4，WFA47-YB100M4，WFA47-YB63M4，WFA47-YB71M4，WFA47-YB80M4，WFA47-YB90M4，WFA47-YDP100M4，WFA47-YDP63M4，WFA47-YDP71M4，WFA47-YDP80M4，WFA47-YDP90M4，WFA47-YE100M4，WFA47-YE63M4，WFA47-YE71M4，WFA47-YE80M4，WFA47-YE90M4，WFA47-YEJ100M4，WFA47-YEJ63M4，WFA47-YEJ71M4，WFA47-YEJ80M4，WFA47-YEJ90M4，WFA47-YEJB100M4，WFA47-YEJB63M4，WFA47-YEJB71M4，WFA47-YEJB80M4，WFA47-YEJB90M4，WFA47-YP100M4，WFA47-YP63M4，WFA47-YP71M4，WFA47-YP80M4，WFA47-YP90M4，WFA47-YPB100M4，WFA47-YPB63M4，WFA47-YPB71M4，WFA47-YPB80M4，WFA47-YPB90M4，WFA47-YPE100M4，WFA47-YPE63M4，WFA47-YPE71M4，WFA47-YPE80M4，WFA47-YPE90M4，WFA47-YS100M4，WFA47-YS63M4，WFA47-YS71M4，WFA47-YS80M4，WFA47-YS90M4，WFA47-YVB100M4，WFA47-YVB63M4，WFA47-YVB71M4，WFA47-YVB80M4，WFA47-YVB90M4，WFA47-YVP100M4，WFA47-YVP63M4，WFA47-YVP71M4，WFA47-YVP80M4，WFA47-YVP90M4，WFA47-YVPEJ100M4，WFA47-YVPEJ63M4，WFA47-YVPEJ71M4，WFA47-YVPEJ80M4，WFA47-YVPEJ90M4，NFA47-Y0.12KW，NFA47-Y0.18KW，NFA47-Y0.25KW，NFA47-Y0.37KW，NFA47-Y0.55KW，NFA47-Y0.75KW，NFA47-Y1.1KW，NFA47-Y1.5KW，NFA47-Y100M4，NFA47-Y2.2KW，NFA47-Y3KW，NFA47-Y63M4，NFA47-Y71M4，NFA47-Y80M4，NFA47-Y90M4，NFA47-YB100M4，NFA47-YB63M4，NFA47-YB71M4，NFA47-YB80M4，NFA47-YB90M4，NFA47-YDP100M4，NFA47-YDP63M4，NFA47-YDP71M4，NFA47-YDP80M4，NFA47-YDP90M4，NFA47-YE100M4，NFA47-YE63M4，NFA47-YE71M4，NFA47-YE80M4，NFA47-YE90M4，NFA47-YEJ100M4，NFA47-YEJ63M4，NFA47-YEJ71M4，NFA47-YEJ80M4，NFA47-YEJ90M4，NFA47-YEJB100M4，NFA47-YEJB63M4，NFA47-YEJB71M4，NFA47-YEJB80M4，NFA47-YEJB90M4，NFA47-YP100M4，NFA47-YP63M4，NFA47-YP71M4，NFA47-YP80M4，NFA47-YP90M4，NFA47-YPB100M4，NFA47-YPB63M4，NFA47-YPB71M4，NFA47-YPB80M4，NFA47-YPB90M4，NFA47-YPE100M4，NFA47-YPE63M4，NFA47-YPE71M4，NFA47-YPE80M4，NFA47-YPE90M4，NFA47-YS100M4，NFA47-YS63M4，NFA47-YS71M4，NFA47-YS80M4，NFA47-YS90M4，NFA47-YVB100M4，NFA47-YVB63M4，NFA47-YVB71M4，NFA47-YVB80M4，NFA47-YVB90M4，NFA47-YVP100M4，NFA47-YVP63M4，NFA47-YVP71M4，NFA47-YVP80M4，NFA47-YVP90M4，NFA47-YVPEJ100M4，NFA47-YVPEJ63M4，NFA47-YVPEJ71M4，NFA47-YVPEJ80M4，NFA47-YVPEJ90M4，SFA47-Y0.12KW，SFA47-Y0.18KW，SFA47-Y0.25KW，SFA47-Y0.37KW，SFA47-Y0.55KW，SFA47-Y0.75KW，SFA47-Y1.1KW，SFA47-Y1.5KW，SFA47-Y100M4，SFA47-Y2.2KW，SFA47-Y3KW，SFA47-Y63M4，SFA47-Y71M4，SFA47-Y80M4，SFA47-Y90M4，SFA47-YB100M4，SFA47-YB63M4，SFA47-YB71M4，SFA47-YB80M4，SFA47-YB90M4，SFA47-YDP100M4，SFA47-YDP63M4，SFA47-YDP71M4，SFA47-YDP80M4，SFA47-YDP90M4，SFA47-YE100M4，SFA47-YE63M4，SFA47-YE71M4，SFA47-YE80M4，SFA47-YE90M4，SFA47-YEJ100M4，SFA47-YEJ63M4，SFA47-YEJ71M4，SFA47-YEJ80M4，SFA47-YEJ90M4，SFA47-YEJB100M4，SFA47-YEJB63M4，SFA47-YEJB71M4，SFA47-YEJB80M4，SFA47-YEJB90M4，SFA47-YP100M4，SFA47-YP63M4，SFA47-YP71M4，SFA47-YP80M4，SFA47-YP90M4，SFA47-YPB100M4，SFA47-YPB63M4，SFA47-YPB71M4，SFA47-YPB80M4，SFA47-YPB90M4，SFA47-YPE100M4，SFA47-YPE63M4，SFA47-YPE71M4，SFA47-YPE80M4，SFA47-YPE90M4，SFA47-YS100M4，SFA47-YS63M4，SFA47-YS71M4，SFA47-YS80M4，SFA47-YS90M4，SFA47-YVB100M4，SFA47-YVB63M4，SFA47-YVB71M4，SFA47-YVB80M4，SFA47-YVB90M4，SFA47-YVP100M4，SFA47-YVP63M4，SFA47-YVP71M4，SFA47-YVP80M4，SFA47-YVP90M4，SFA47-YVPEJ100M4，SFA47-YVPEJ63M4，SFA47-YVPEJ71M4，SFA47-YVPEJ80M4，SFA47-YVPEJ90M4，AFA47-Y0.12KW，AFA47-Y0.18KW，AFA47-Y0.25KW，AFA47-Y0.37KW，AFA47-Y0.55KW，AFA47-Y0.75KW，AFA47-Y1.1KW，AFA47-Y1.5KW，AFA47-Y100M4，AFA47-Y2.2KW，AFA47-Y3KW，AFA47-Y63M4，AFA47-Y71M4，AFA47-Y80M4，AFA47-Y90M4，AFA47-YB100M4，AFA47-YB63M4，AFA47-YB71M4，AFA47-YB80M4，AFA47-YB90M4，AFA47-YDP100M4，AFA47-YDP63M4，AFA47-YDP71M4，AFA47-YDP80M4，AFA47-YDP90M4，AFA47-YE100M4，AFA47-YE63M4，AFA47-YE71M4，AFA47-YE80M4，AFA47-YE90M4，AFA47-YEJ100M4，AFA47-YEJ63M4，AFA47-YEJ71M4，AFA47-YEJ80M4，AFA47-YEJ90M4，AFA47-YEJB100M4，AFA47-YEJB63M4，AFA47-YEJB71M4，AFA47-YEJB80M4，AFA47-YEJB90M4，AFA47-YP100M4，AFA47-YP63M4，AFA47-YP71M4，AFA47-YP80M4，AFA47-YP90M4，AFA47-YPB100M4，AFA47-YPB63M4，AFA47-YPB71M4，AFA47-YPB80M4，AFA47-YPB90M4，AFA47-YPE100M4，AFA47-YPE63M4，AFA47-YPE71M4，AFA47-YPE80M4，AFA47-YPE90M4，AFA47-YS100M4，AFA47-YS63M4，AFA47-YS71M4，AFA47-YS80M4，AFA47-YS90M4，AFA47-YVB100M4，AFA47-YVB63M4，AFA47-YVB71M4，AFA47-YVB80M4，AFA47-YVB90M4，AFA47-YVP100M4，AFA47-YVP63M4，AFA47-YVP71M4，AFA47-YVP80M4，AFA47-YVP90M4，AFA47-YVPEJ100M4，AFA47-YVPEJ63M4，AFA47-YVPEJ71M4，AFA47-YVPEJ80M4，AFA47-YVPEJ90M4，GFA49-Y0.12KW，GFA49-Y0.18KW，GFA49-Y0.25KW，GFA49-Y0.37KW，GFA49-Y0.55KW，GFA49-Y0.75KW，GFA49-Y1.1KW，GFA49-Y1.5KW，GFA49-Y100M4，GFA49-Y2.2KW，GFA49-Y3KW，GFA49-Y63M4，GFA49-Y71M4，GFA49-Y80M4，GFA49-Y90M4，GFA49-YB100M4，GFA49-YB63M4，GFA49-YB71M4，GFA49-YB80M4，GFA49-YB90M4，GFA49-YDP100M4，GFA49-YDP63M4，GFA49-YDP71M4，GFA49-YDP80M4，GFA49-YDP90M4，GFA49-YE100M4，GFA49-YE63M4，GFA49-YE71M4，GFA49-YE80M4，GFA49-YE90M4，GFA49-YEJ100M4，GFA49-YEJ63M4，GFA49-YEJ71M4，GFA49-YEJ80M4，GFA49-YEJ90M4，GFA49-YEJB100M4，GFA49-YEJB63M4，GFA49-YEJB71M4，GFA49-YEJB80M4，GFA49-YEJB90M4，GFA49-YP100M4，GFA49-YP63M4，GFA49-YP71M4，GFA49-YP80M4，GFA49-YP90M4，GFA49-YPB100M4，GFA49-YPB63M4，GFA49-YPB71M4，GFA49-YPB80M4，GFA49-YPB90M4，GFA49-YPE100M4，GFA49-YPE63M4，GFA49-YPE71M4，GFA49-YPE80M4，GFA49-YPE90M4，GFA49-YS100M4，GFA49-YS63M4，GFA49-YS71M4，GFA49-YS80M4，GFA49-YS90M4，GFA49-YVB100M4，GFA49-YVB63M4，GFA49-YVB71M4，GFA49-YVB80M4，GFA49-YVB90M4，GFA49-YVP100M4，GFA49-YVP63M4，GFA49-YVP71M4，GFA49-YVP80M4，GFA49-YVP90M4，GFA49-YVPEJ100M4，GFA49-YVPEJ63M4，GFA49-YVPEJ71M4，GFA49-YVPEJ80M4，GFA49-YVPEJ90M4。

FA49減速機生產工廠展示：看廠請聯系微信13827261050，獲取位置，需提前一天預約http://www.knight-foundation.com/product/list-faxiliejiansuji-cn.html

推薦類似型號：F49減速機
